Epitaxial Films on Substrates > AlN / Si (100) - Aluminum Nitride on Silicon

Specifications

  • Material: Aluminum Nitride buffer layer 200 nm on Silicon (100)
  • Size: 10 × 10 × 0.50 mm
  • Orientation: C-Plane (0.01)
  • Structure: Wurtzite
  • Lattice Constant: a= 3.11 Å
  • Type/Dopant: Undoped
  • Film Growth Method: PVDNC Method
  • Melting Temperature: 2500 °C
  • Debye Temperature (at 27 °C): 876 °C [Ref. 9]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
    Model LEED 800
  • UHV Treatment: Annealing at 800 °C (estimated temperature of sample) for 5 minutes
  • Applications: Optoelectronics, surface acoustic wave sensors, and radio frequency filters.

LEED Pattern

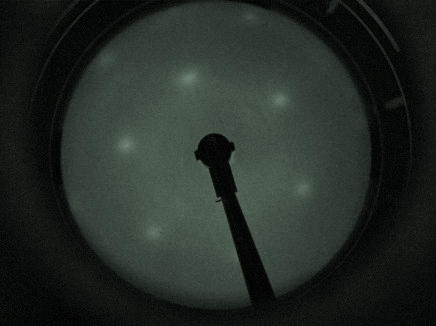

AlN on Si (100) - LEED Pattern 110 eV
AlN on Si (100) - LEED Pattern 110 eV

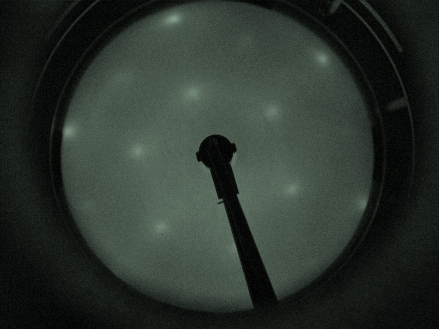

AlN on Si (100) - LEED Pattern 150 eV
AlN on Si (100) - LEED Pattern 150 eV

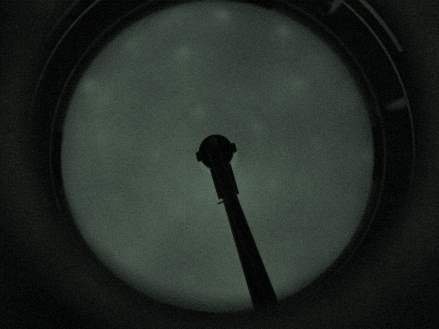

AlN on Si (100) - LEED Pattern 265 eV
AlN on Si (100) - LEED Pattern 265 eV

NOTE: GaN / AlN / Si (100) was annealed at 800˚C causing GaN laeyr to evaporate off exposing AlN buffer layer.

AlN / Si (100) - AES Spectrum

AlN / Si (100) - AES Spectrum

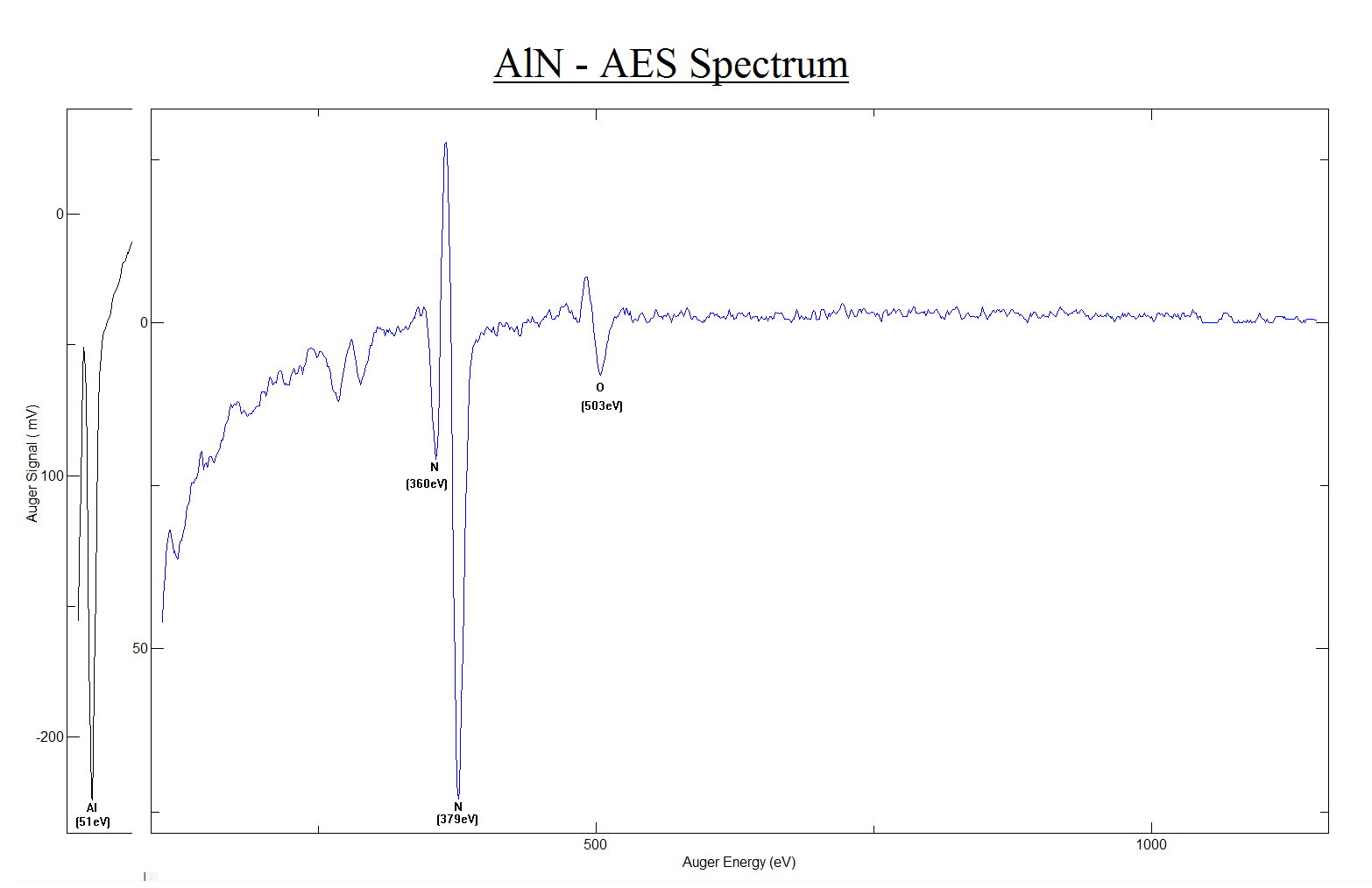

AlN - AES Spectrum
