Low Energy Electron Diffraction & Auger Electron Spectroscopy Data


Crystal Substrates > BP3 on Au (111) - BP3 on Gold

  • Material: BP3 on Gold
  • Size: 10 × 10 × 0.5 mm
  • Orientation: (111)
  • Structure: Cubic Close Packing
  • Lattice Constant: a = 4.08 Å
  • Type/Dopant:
  • Film Growth Method: Gas Phase Deposition
  • Melting Temperature: 1064 °C
  • Debye Temperature (at 14GkPa): -104.15 °C ±18 °[Ref. 7]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
  • Model LEED 800 MPC
  • UHV Treatment: Annealing at 90 °C (estimated temperature of sample) for 12 hours
  • Applications: Sunscreen and plastic additive

Courtesy of M. Kazempoor and Dr. G. Pirug, Forschungszentrum Juelich, Germany.

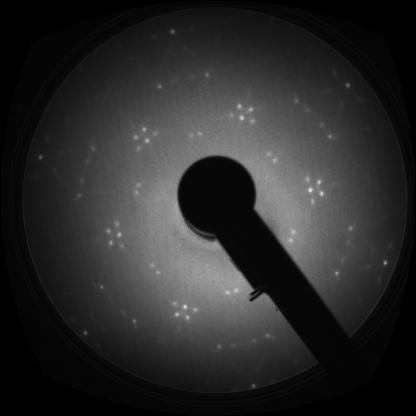

LEED Pattern after Deposition and Annealing

BP3 on Au (111) LEED Pattern 69 eV
BP3 on Au (111) LEED Pattern 69eV
