Crystal Substrates > LiNbO3 (0001) - Fe - Iron Doped Lithium Niobate

  • Material: LiNbO3 optical grade Z-cut
  • Size: 10 mm x 10 mm x 0.5 mm
  • Orientation: (0001) with edge (11-20)
  • Structure: Hexagonal
  • Lattice Constant: a=5.148 Å c=13.863 Å
  • Type/Dopant: 0.07 % mol Fe
  • Growth Method: Czochralsky method
  • Melting Temperature: 1250 °C
  • Debye Temperature: 307.25 °C [Ref. 17]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
  • Model: BDL800IR
  • UHV Treatment: Annealing
  • Applications: Popular photorefractive material with good electro-optical and chemo-mechanical properties, holographic storage [Ref. 20].

LEED Patterns

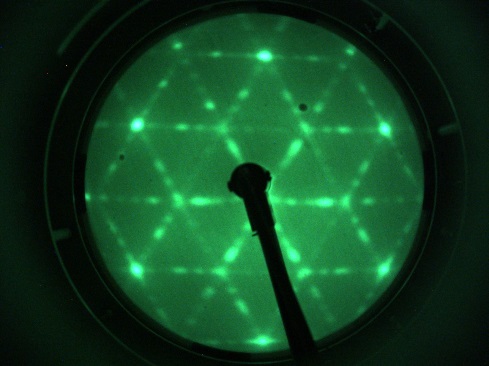

Fe-LiNbO3 (0001) - LEED Pattern 50 eV
Fe-LiNbO3 (0001) - LEED Pattern 50eV

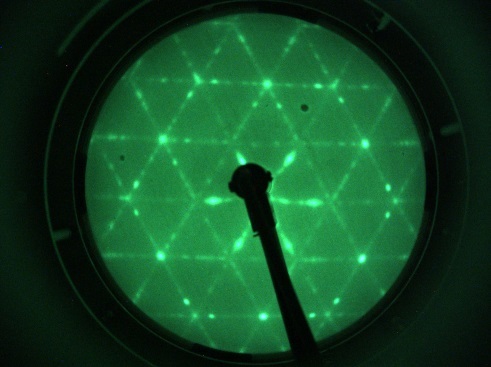

Fe-LiNbO3 (0001) - LEED Pattern 75 eV
Fe-LiNbO3 (0001) - LEED Pattern 75 eV

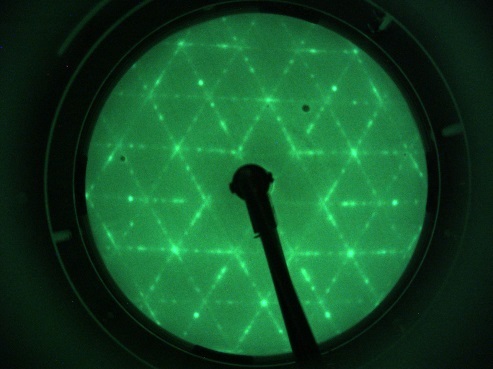

Fe-LiNbO3 (0001) - LEED Pattern 100 eV
Fe-LiNbO3 (0001) - LEED Pattern 100 eV

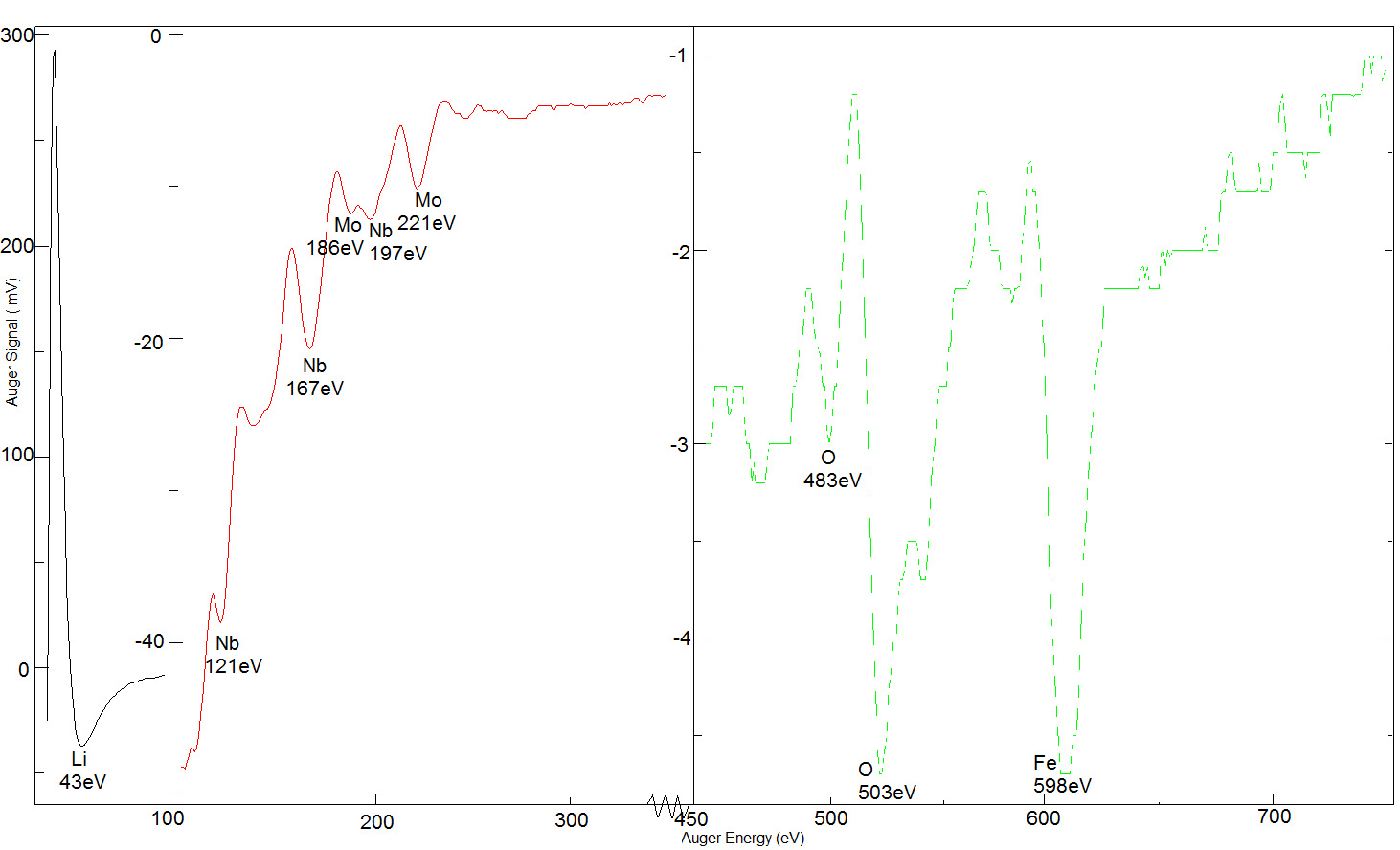

Fe-LiNbO3 (0001) – AES Spectrum

Fe-LiNbO3 0001 - AES Spectrum
Fe-LiNbO3 (0001) – AES Spectrum
