Crystal Substrates > PbWO4 - Lead Tungstate

Substrate Specifications

  • Material: Lead Tungstate
  • Size: 10 mm x 5 mm x 0.45 mm
  • Orientation: Random
  • Structure: Tetragonal
  • Lattice Constant: a = b= 5.416 Å c =12.049 Å
  • Type/Dopant: Undoped
  • Growth Method: Unpublished
  • Melting Temperature: 1123 °C
  • Debye Temperature: Unpublished
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
    Model: BDL800IR
  • UHV Treatment: Annealing
  • Applications: used in high energy devices, CMS detectors, medical devices, photonics applications [Ref. 43]

LEED Patterns

PbWO4 - LEED Pattern 140 eV

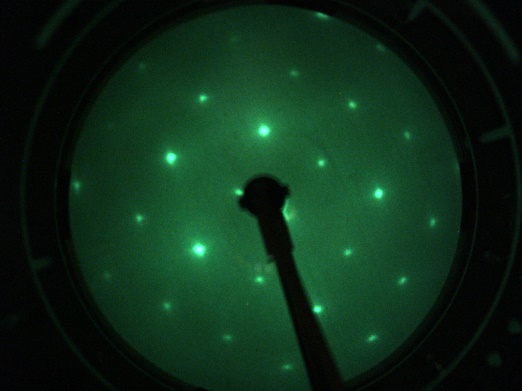

PbWO4 - LEED Pattern 70 eV
PbWO4 - LEED Pattern 200 eV

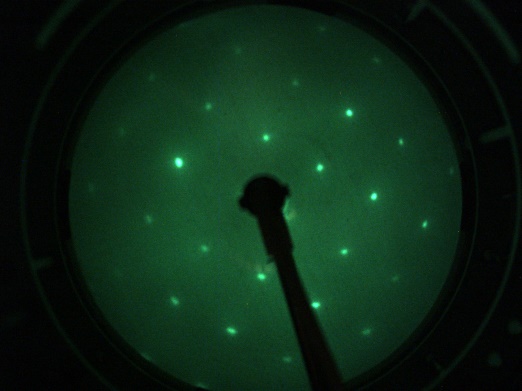

PbWO4 - LEED Pattern 80 eV
PbWO4 - LEED Pattern 320 eV

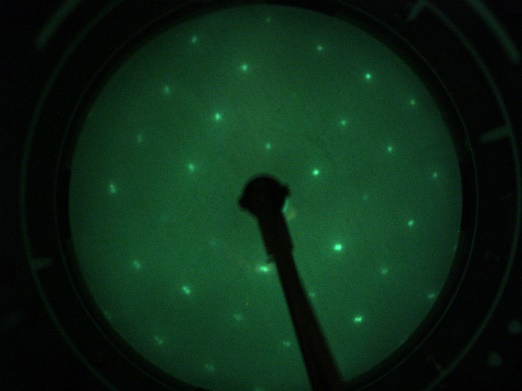

PbWO4 - LEED Pattern 100 eV
