Low Energy Electron Diffraction & Auger Electron Spectroscopy Data


Crystal Substrates > MgO - Magnesium Oxide

Substrate Specifications

  • Material: Magnesium Oxide
  • Size: 10 mm x 10 mm x 0.5 mm
  • Orientation: (100) with edge (100)
  • Structure: Cubic
  • Lattice Constant: a = 4.216 Å
  • Type/Dopant: Undoped
  • Growth Method: Special Arc Melting
  • Melting Temperature: 2852 °C
  • Debye Temperature: 750 K [Ref. 41]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
    Model: BDL800IR
  • UHV Treatment: Annealing
  • Applications: commonly used in the ferroalloy, non-ferrous, glass and cement industries [Ref. 42]

LEED Patterns

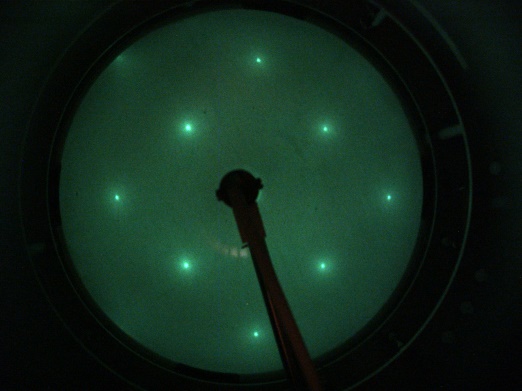

MgO - LEED Pattern 90 eV
MgO - LEED Pattern 90 eV

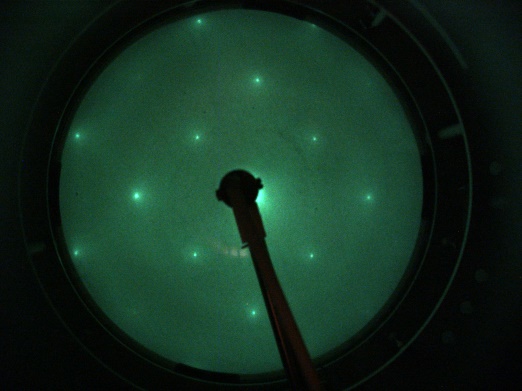

MgO - LEED Pattern 125 eV
MgO - LEED Pattern 125 eV

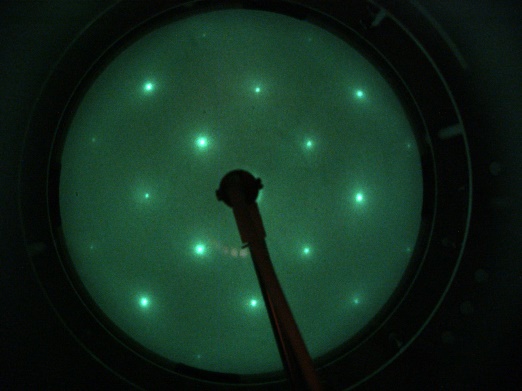

MgO - LEED Pattern 150 eV
MgO - LEED Pattern 150 eV
