Crystal Substrates > SrTiO3 (100) - Strontium Titanate

Substrate Specifications

  • Material: Strontium Titanate (100)
  • Size: 10 × 10 × 0.5 mm
  • Orientation: (100)
  • Structure: Cubic
  • Lattice Constant: a=3.905 Å
  • Type/Dopant: Undoped
  • Growth Method: Vernuil
  • Melting Temperature: 2080 °C
  • Debye Temperature (at 27 °C): 360 °C [Ref. 10]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES Model BDL800IR
  • UHV Treatment: Annealing at 570 °C (estimated temperature of sample) for 10 minutes
  • Applications: Varistors, and HTS microwave filters.

LEED Patterns

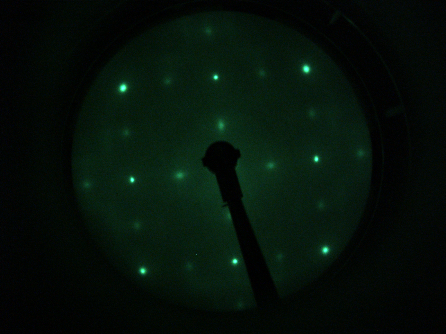

SrTiO<sub>3</sub> (100) - LEED Pattern 40 eV
SrTiO3 (100) - LEED Pattern 40 eV

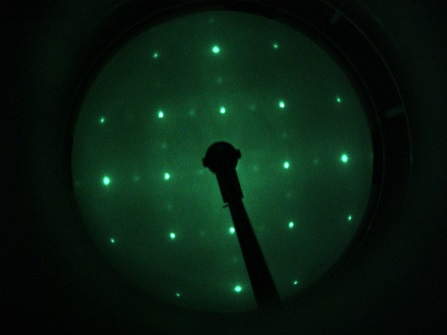

SrTiO<sub>3</sub> (100) - LEED Pattern 95 eV
SrTiO3 (100) - LEED Pattern 95 eV

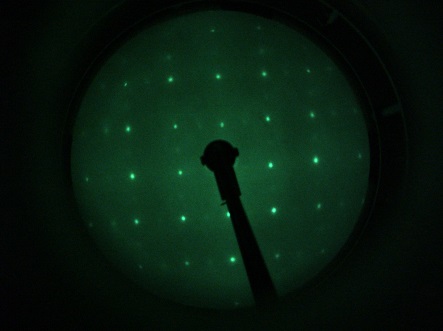

SrTiO<sub>3</sub> (100) - LEED Pattern 160 eV
SrTiO3 (100) - LEED Pattern 160 eV

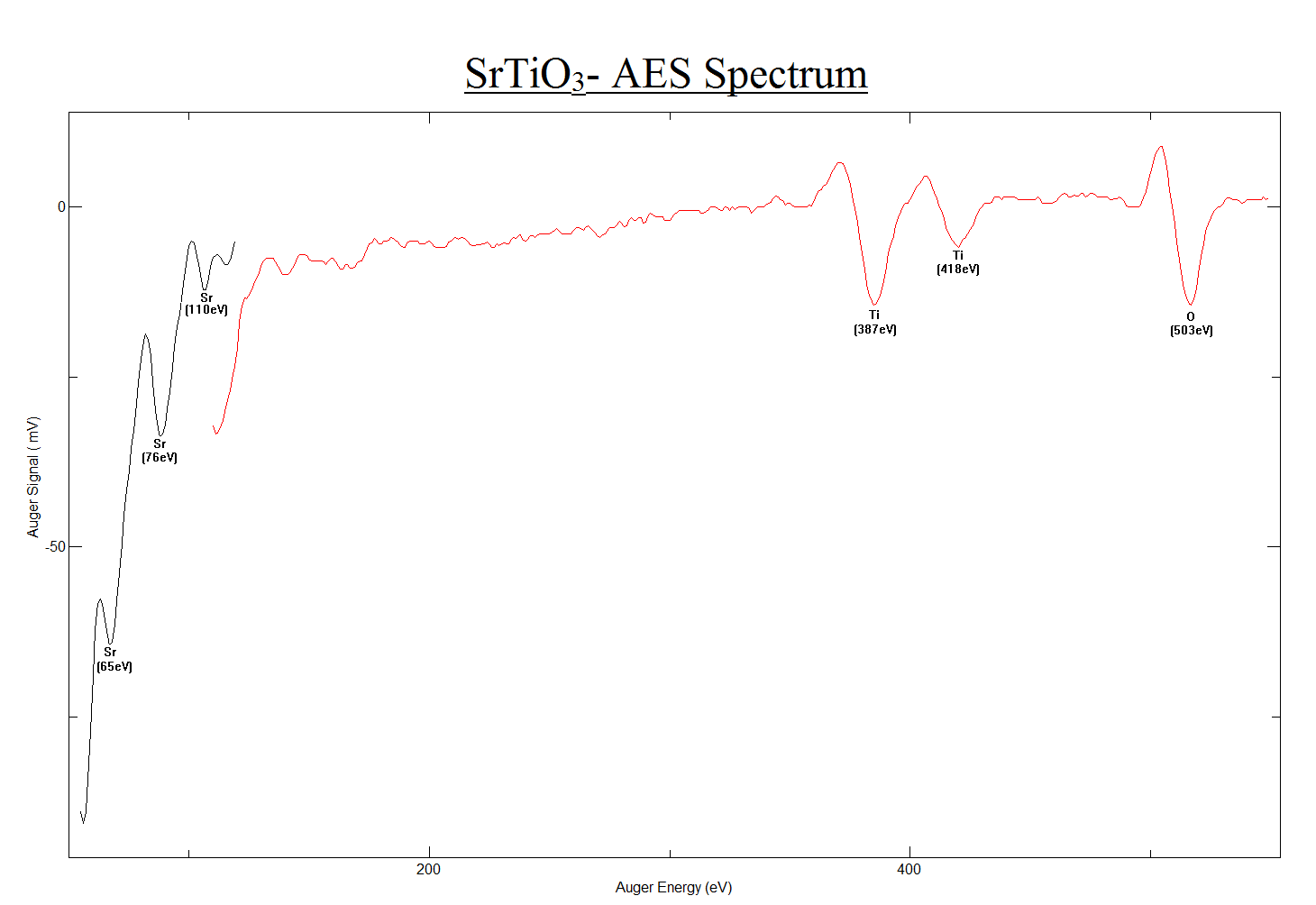

SrTiO3 (100) - AES Spectrum

SrTiO<sub>3</sub> (100) - AES Spectrum
