Crystal Substrates > YIG (111) - Yttrium Iron Garnet

Substrate Specifications

  • Material: Yttrium Iron Garnet (Y3Fe5O12)
  • Size: 5 mm Diameter × 0.5 mm
  • Orientation: (111)
  • Structure: Cubic
  • Lattice Constant: 1.24nm
  • Type/Dopant: Undoped
  • Growth Method: FZ Growth
  • Melting Temperature: 1555 °C
  • Debye Temperature: 360 °C [Ref. 5]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
    Model LEED 800
  • UHV Treatment: Annealing at 620 °C (estimated temperature of sample) for 30 seconds
  • Applications: Microwave devices such as radars, insulator switches and filters

LEED Patterns

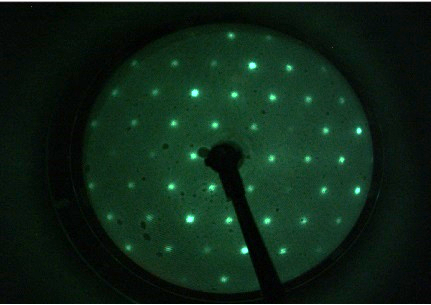

YIG (111) - LEED Pattern 15 eV
YIG (111) - LEED Pattern 15 eV
YIG (111) - LEED Pattern 50 eV
YIG (111) - LEED Pattern 50 eV

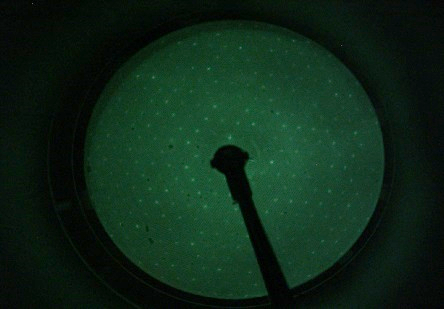

YIG (111) - LEED Pattern 100 eV
YIG (111) - LEED Pattern 100 eV

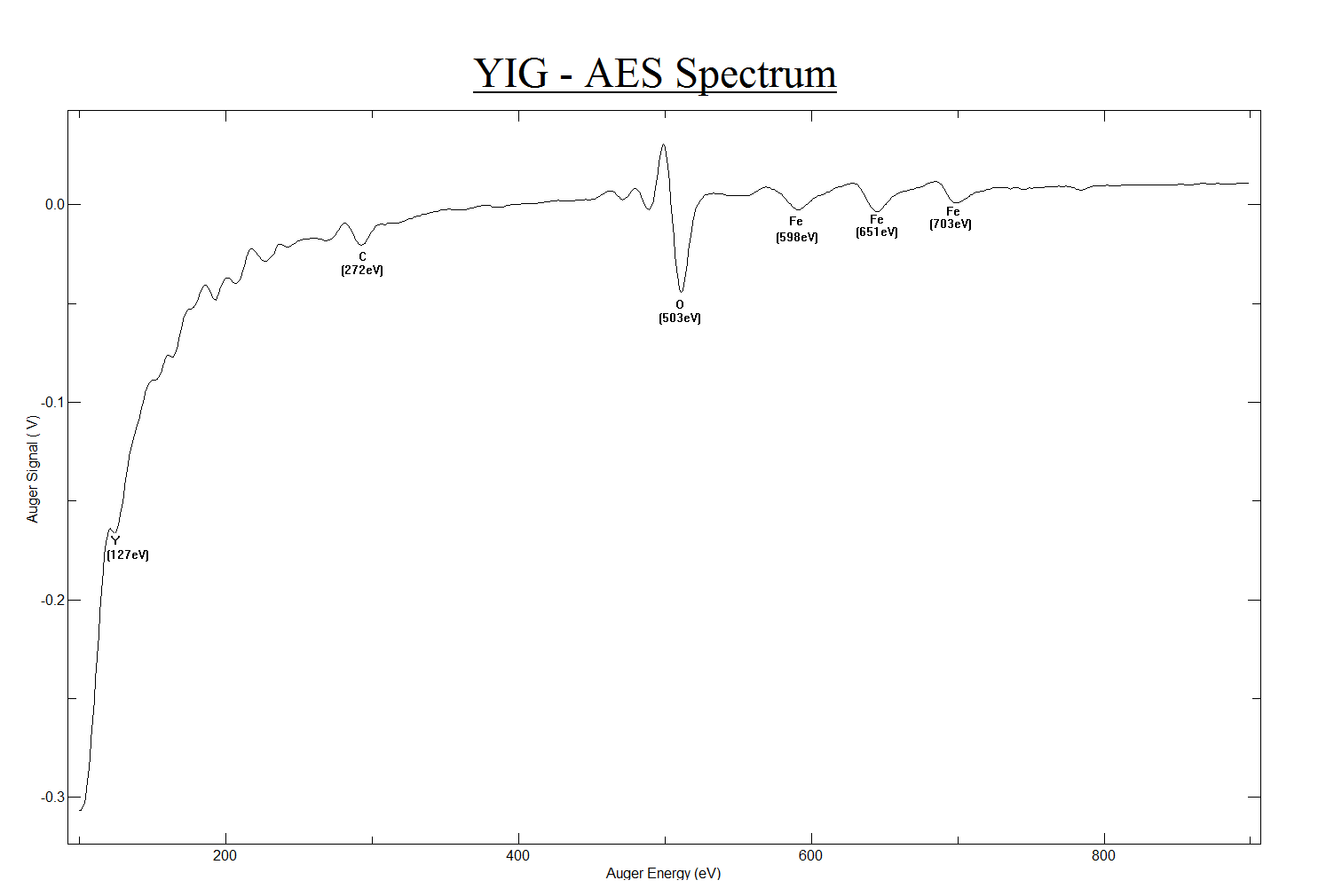

YIG (111) - AES Spectrum

YIG (111) - AES Spectrum
YIG - AES Spectrum
