Low Energy Electron Diffraction & Auger Electron Spectroscopy Data

Crystal Substrates > Au (111) - Gold

  • Material: Gold
  • Size: 10 × 10 × 0.5 mm
  • Orientation: (111)
  • Structure: Cubic Close Packing
  • Lattice Constant: a = 4.08 Å
  • Type/Dopant:
  • Growth Method: Modified Bridgman Method
  • Melting Temperature: 1064 °C
  • Debye Temperature: -108 °C [Ref. 7]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: MCP-LEED
    Model LEED 800 MCP2
  • UHV Treatment: Flash Annealing
  • Applications: Telecommunications, automotive and semiconductor electronics

LEED Patterns

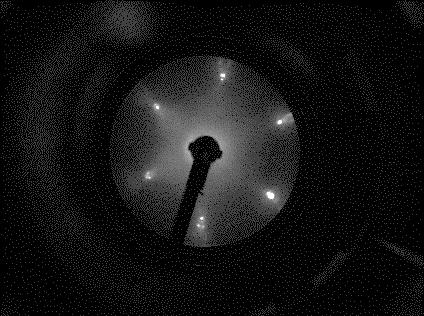

Au - LEED Pattern 65 eV
Au - LEED Pattern 65 eV

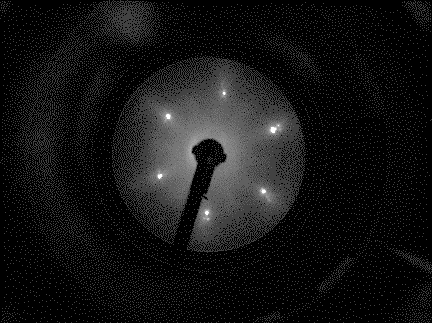

Au - LEED Pattern 80 eV
Au - LEED Pattern 80 eV

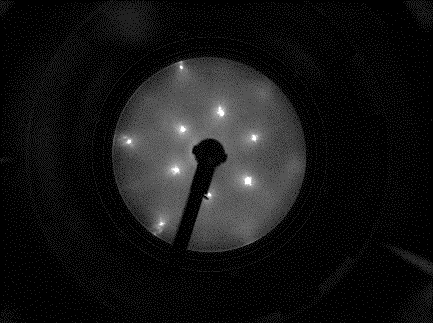

Au - LEED Pattern 147 eV
Au - LEED Pattern 147eV

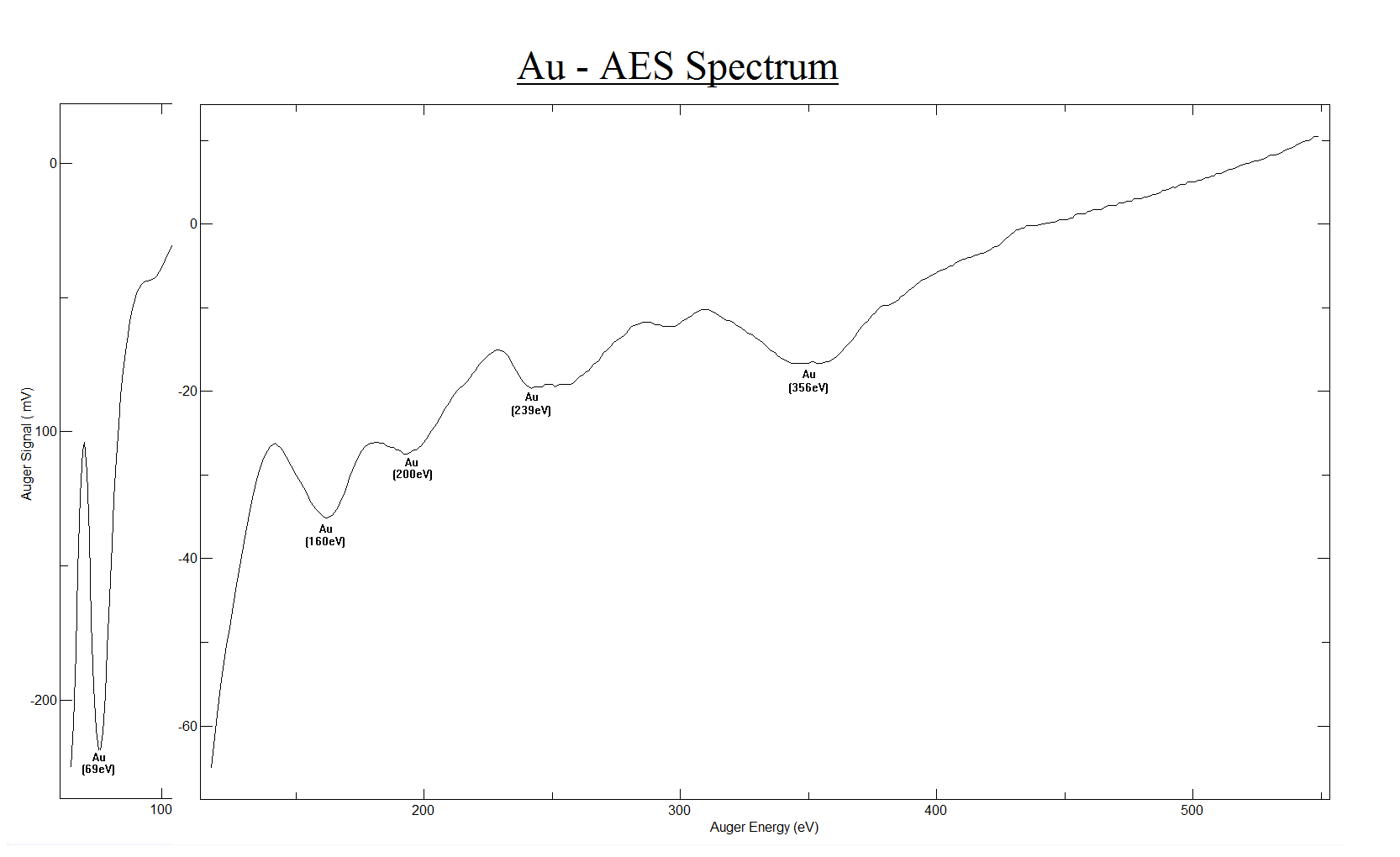

Au - AES Spectrum

Au - AES Spectrum
Au - AES Spectrum
