IntegraLEED Surface Crystallography Spectrometer
LEED 800 (Model BDL800IR) with Integral Retraction and Shutter
Full Flange Size LEED for Higher Angular and Energy Resolution
Based on Low Energy Electron Diffraction (LEED) and Auger Spectroscopy (AES)

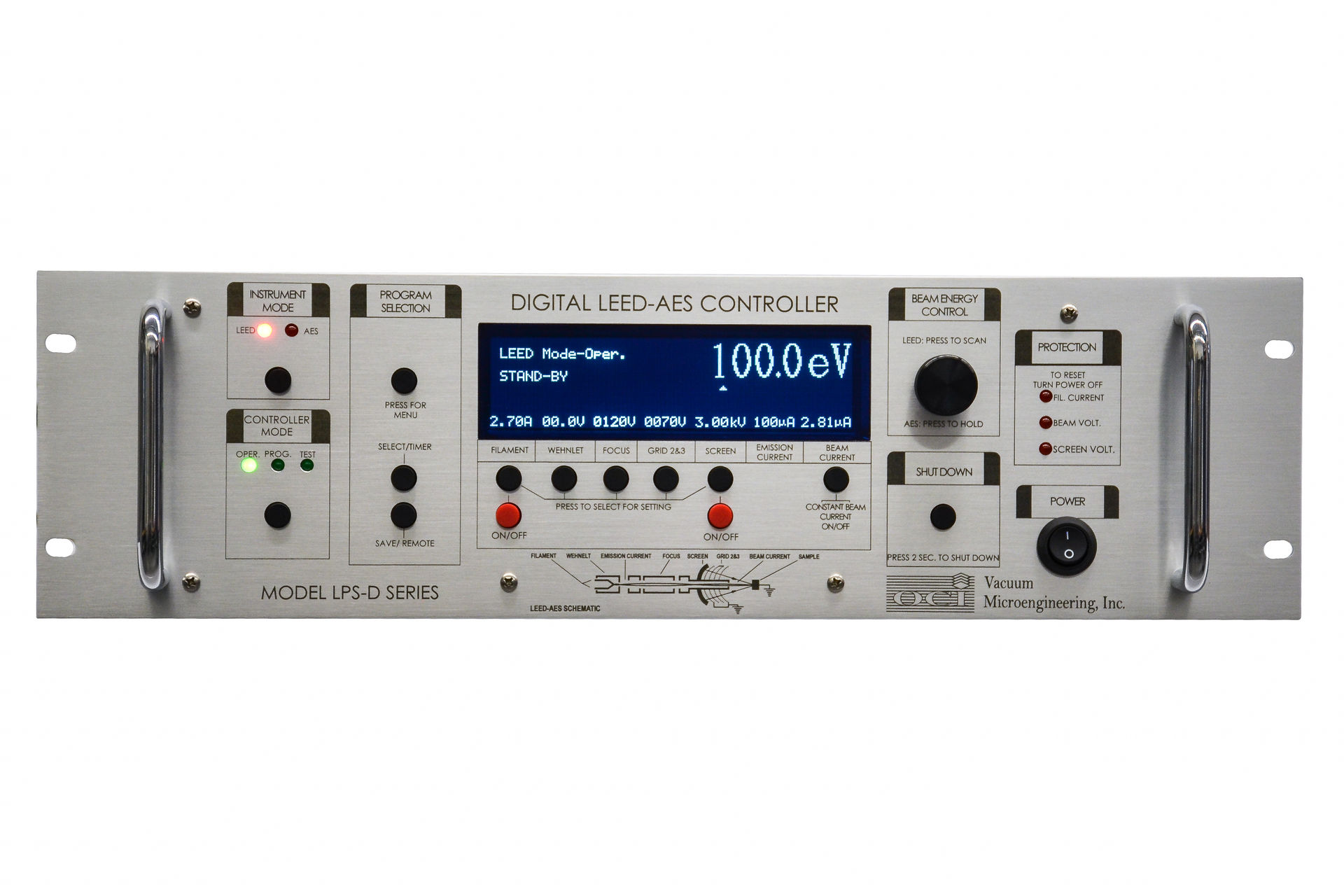

Figure 2. Model LPS075-D power supply for LEED operation.

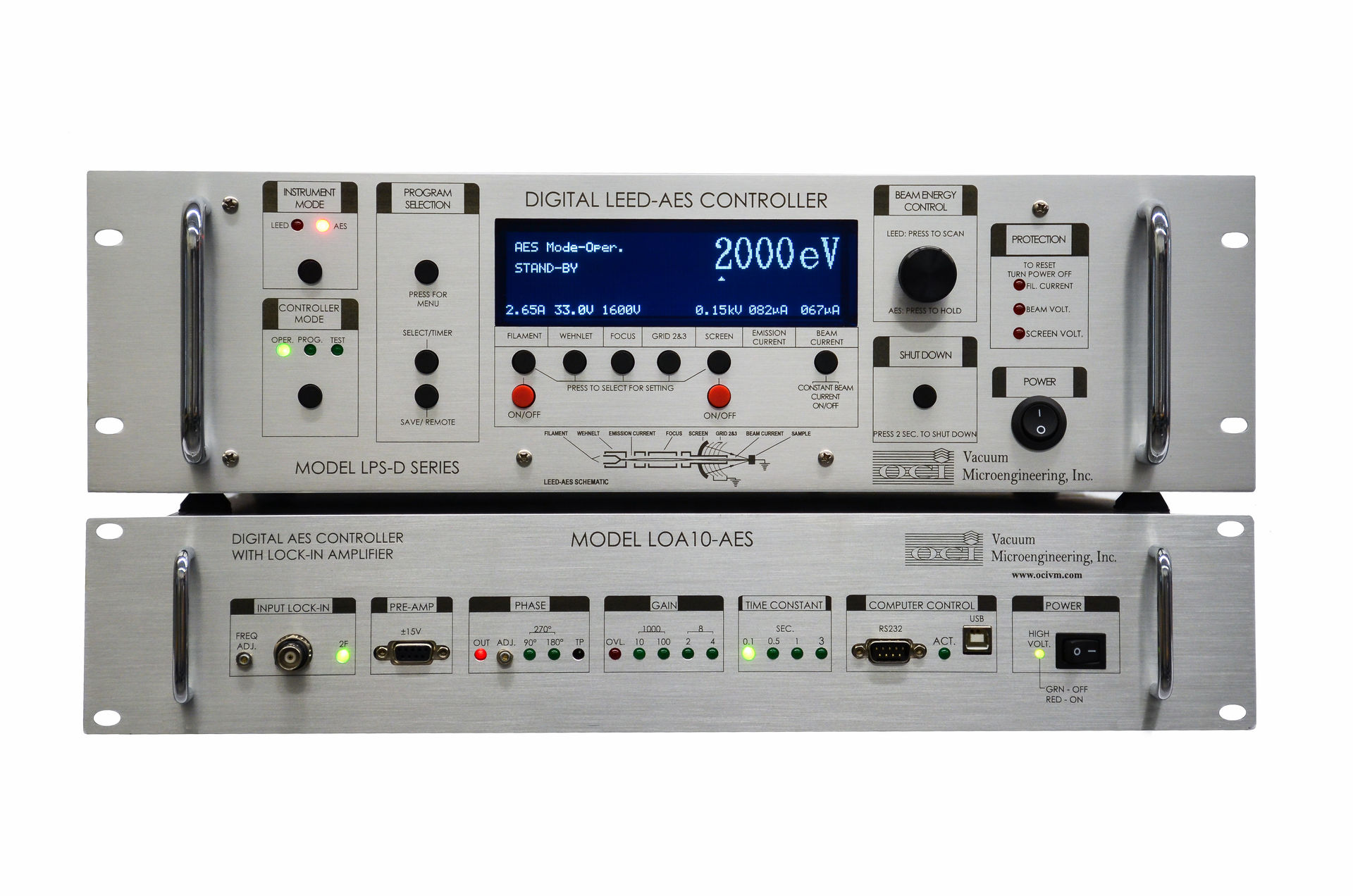

Figure 3. Model LPS300-D and LOA10-AES power supply for LEED and AES operation.

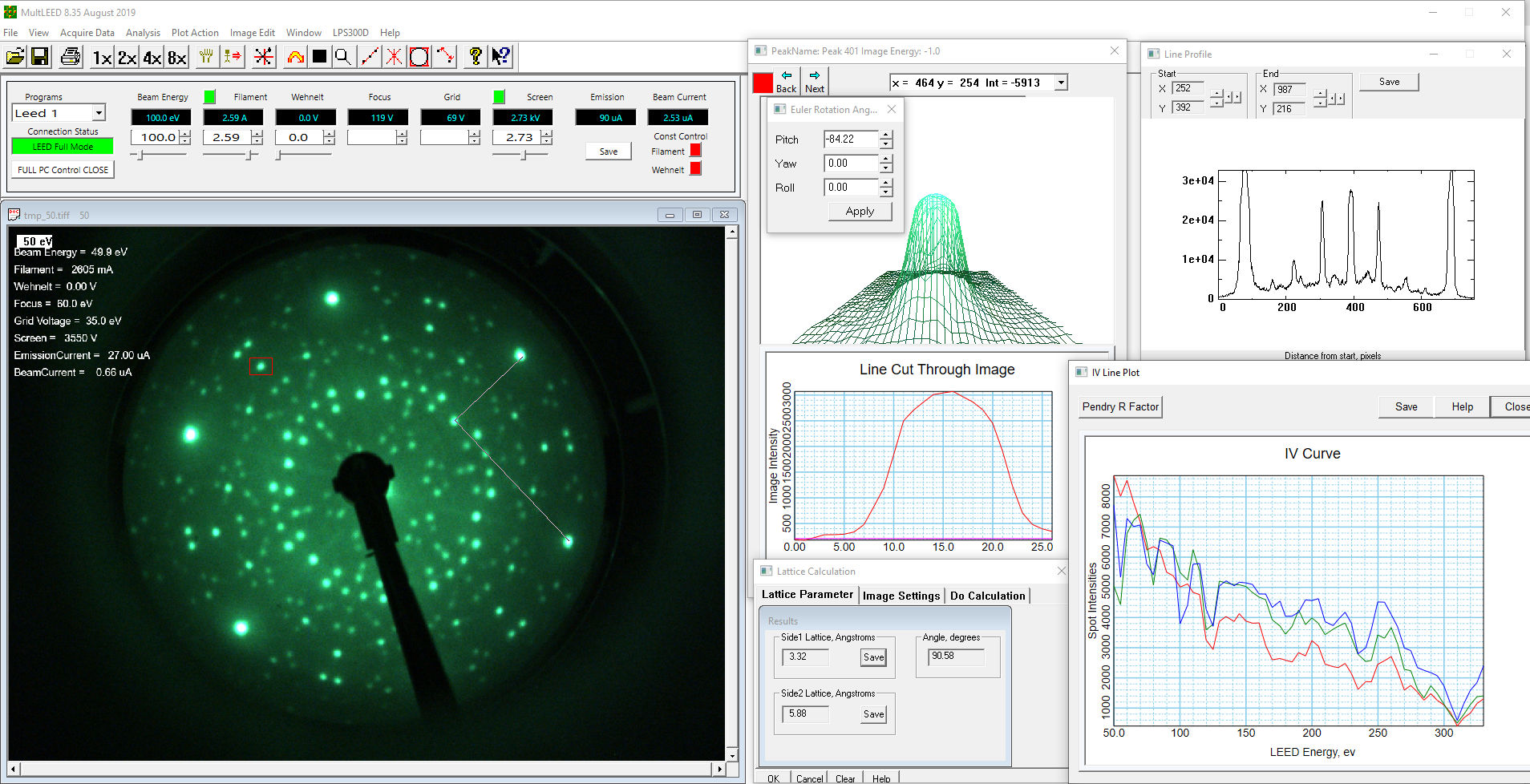

Figure 4. MultiLEED Software.

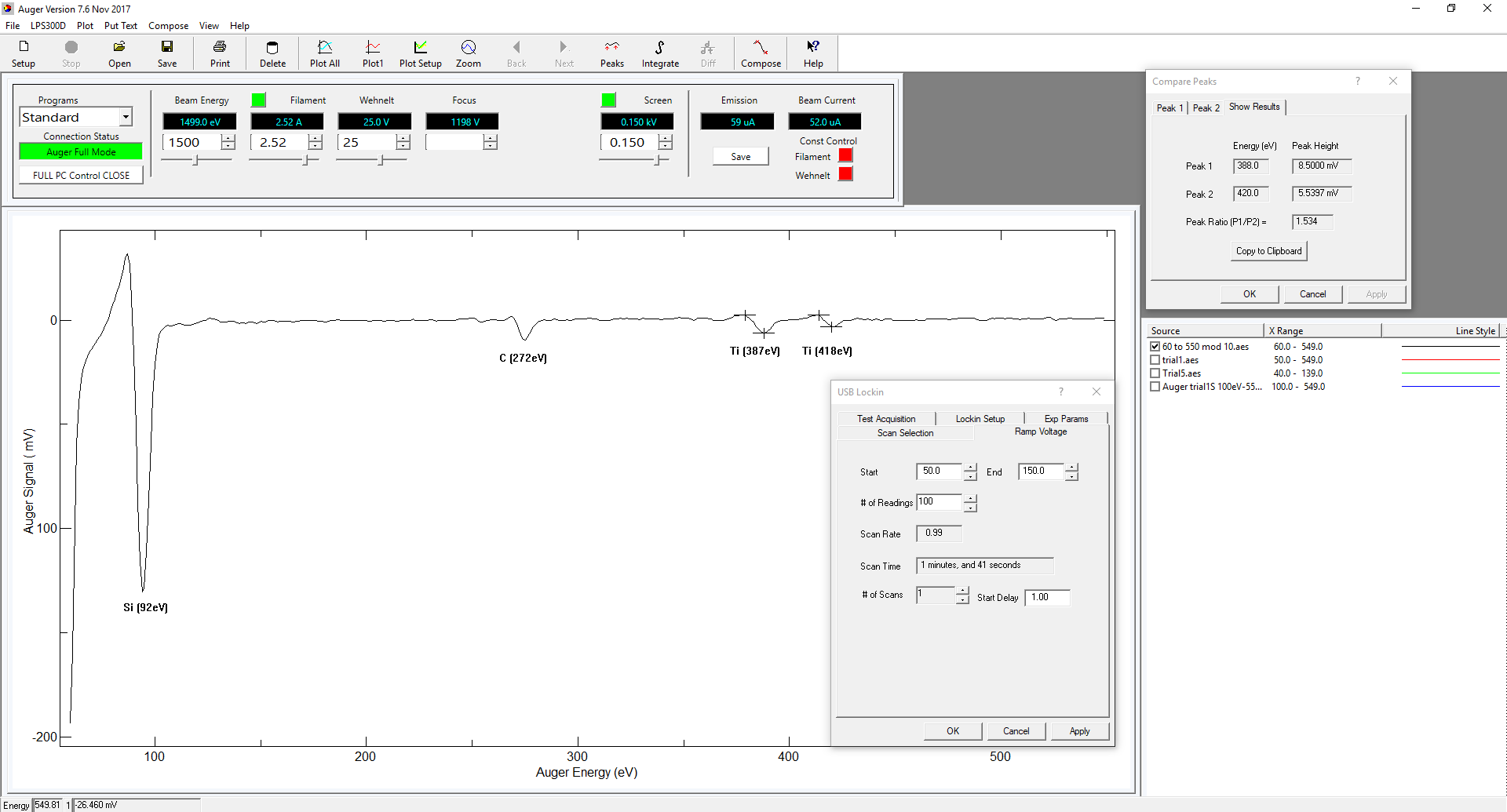

Figure 5. AES Software.

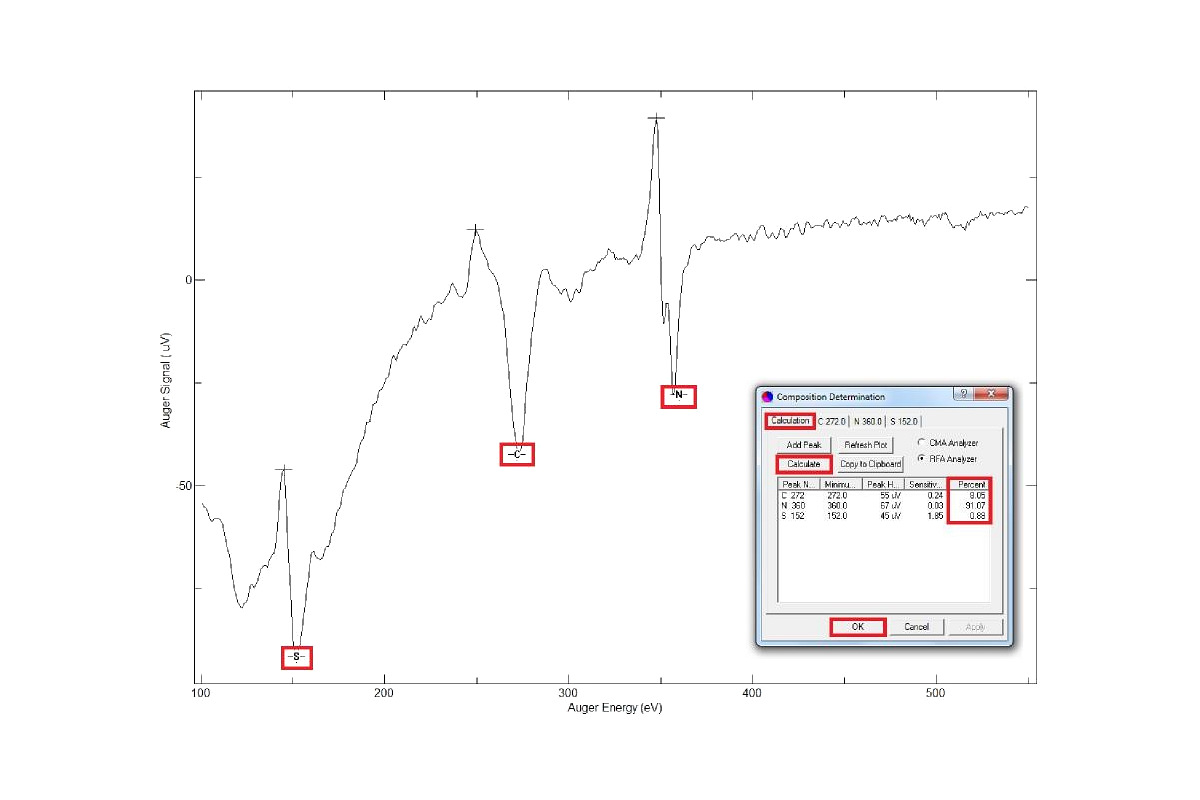

Figure 6. AES Software Images - element composition.
Figure 7. LEED pattern of a Silicon (111) sample with 120 eV beam energy. -120_eV.jpg)
Figure 8. LEED pattern of Strontium Titanate (100) with 95 eV beam energy. -95_eV.jpg)
Figure 9. LEED pattern of Silicon Carbide 6H (0001) with Titanium (estimated deposited layer thickness of 56.0mm) with 130 eV beam energy. -130_eV.jpg)

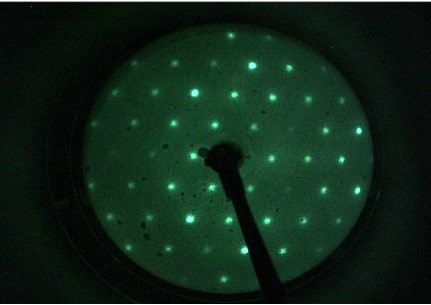

Figure 10. LEED pattern of Yttrium Iron Garnet with 15 eV beam energy.

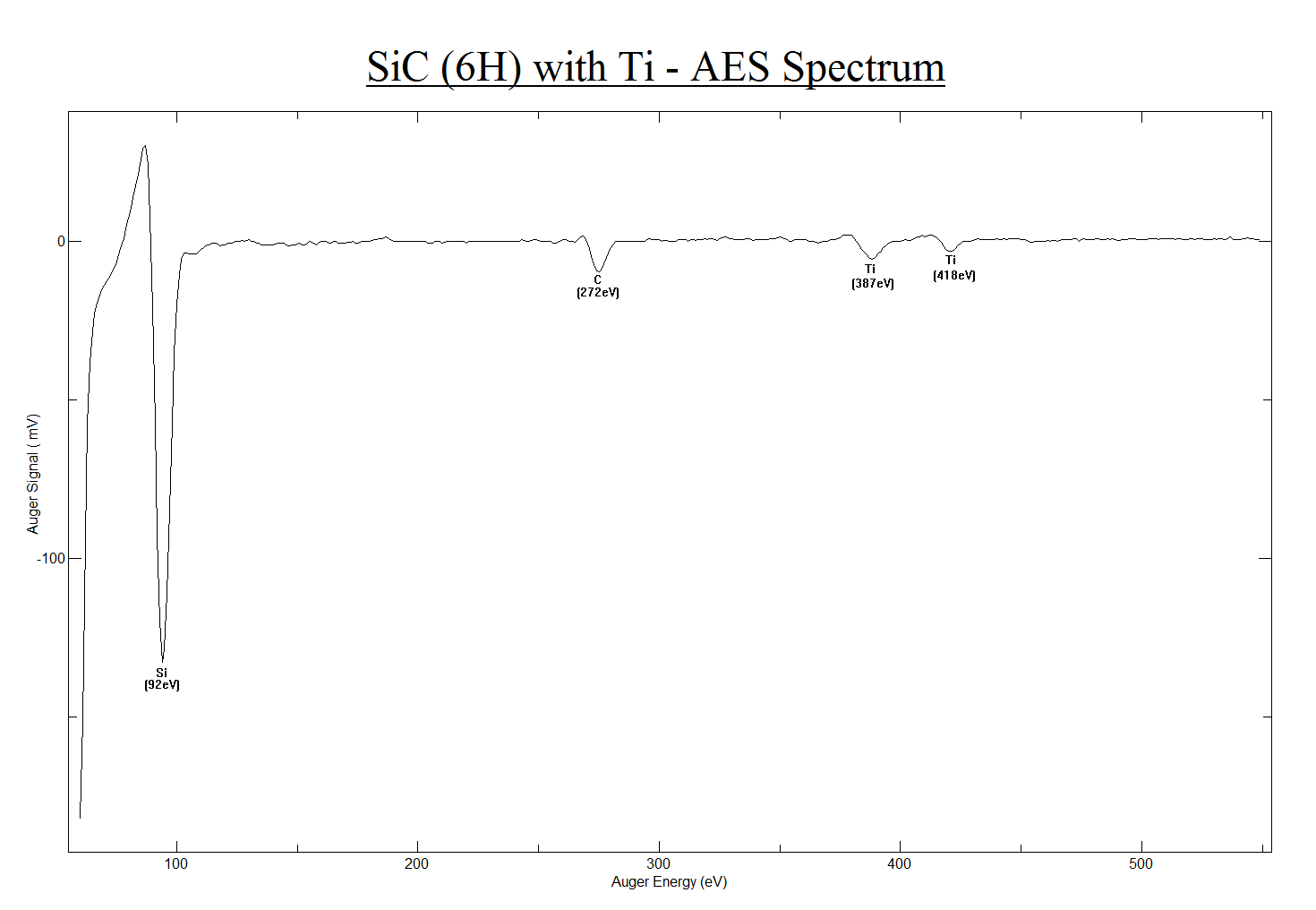

Figure 11. Auger Spectrum of Silicon Carbide 6H with Titanium.

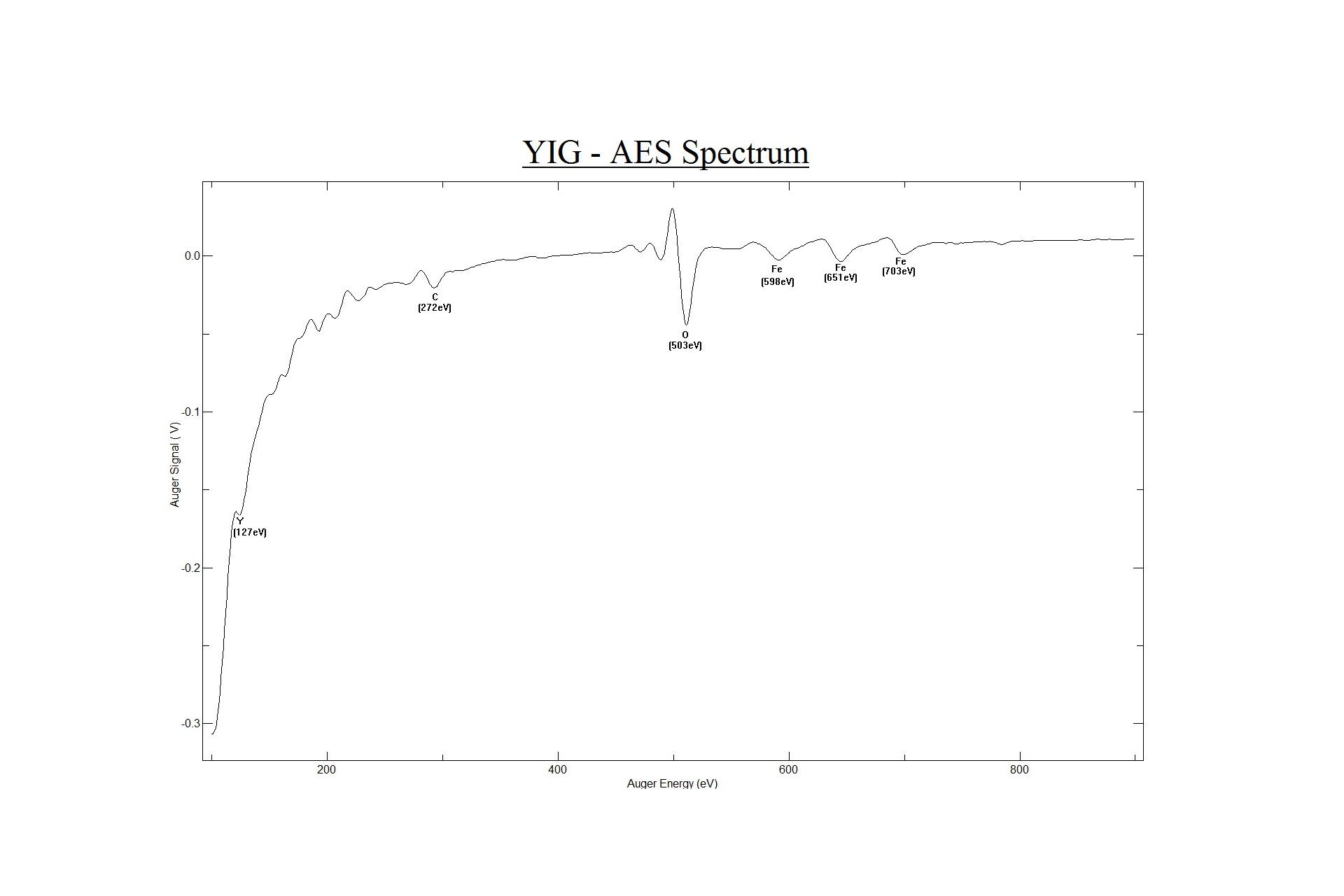

Figure 12. Auger spectrum of Yttrium Iron Garnet.
Description

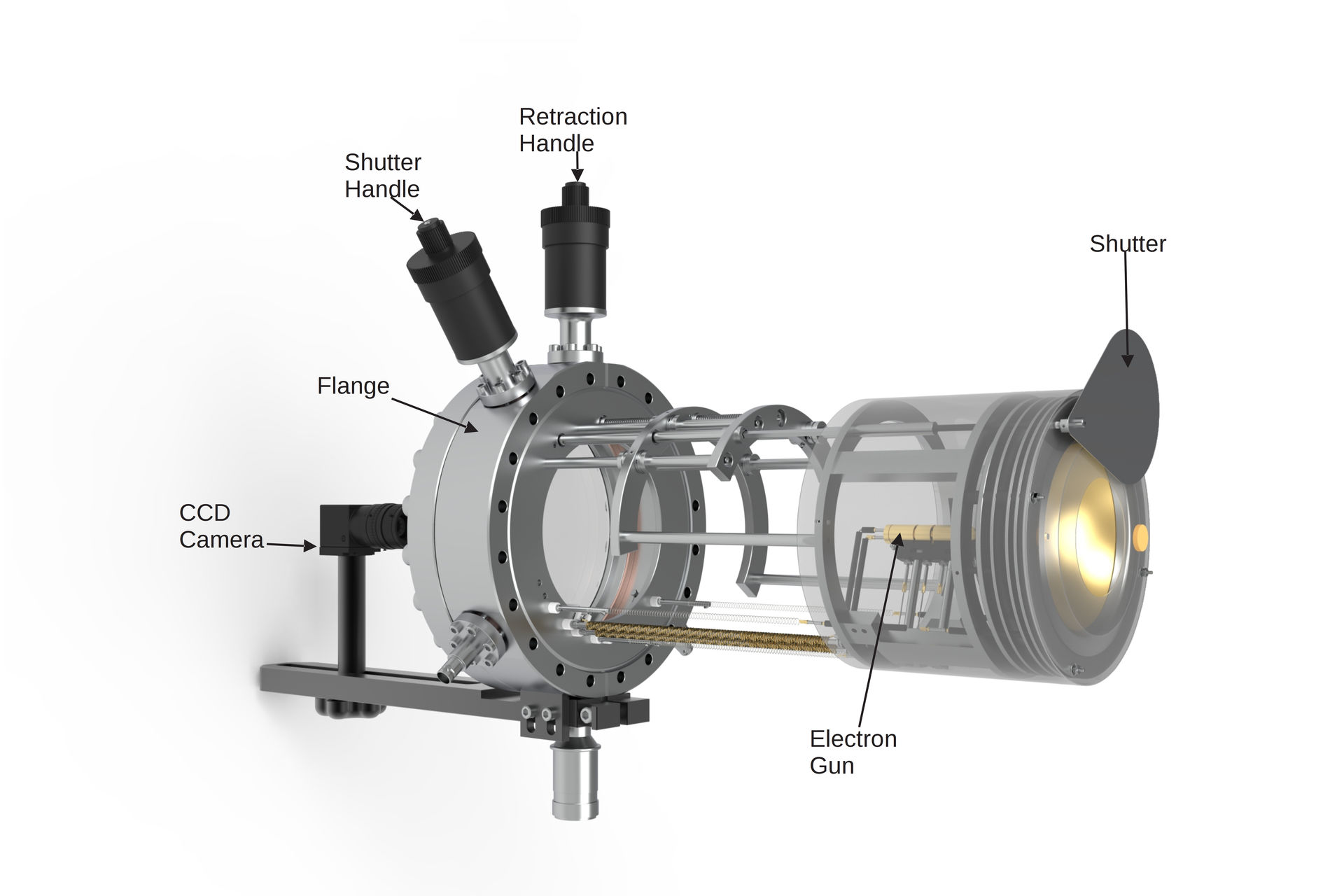

The LEED 800 combines cutting-edge Low-Energy Electron Diffraction (LEED) and Auger Electron Spectroscopy (AES) capabilities in a compact, reliable package. Featuring a miniature electron gun, a set of concentric grids, and a conductive, phosphor-coated screen, this high-performance instrument delivers exceptionally sharp and bright LEED patterns with outstanding resolution in k-space (typical transfer width of 300 Å at 100 eV).
Designed for ease of use, the LEED 800 operates with a modern digital power supply and a robust retraction mechanism, ensuring smooth, dependable day-to-day operation, as trusted by our extensive user base for decades. The wide viewing angle (100 ° at 75 mm sample distance) and minimal screen shadowing by the electron gun maximize the visible LEED pattern, providing unparalleled clarity and precision for surface science research.
Features
- High energy & image resolution for LEED and AES with no Moire pattern interference
- Large angle (100 °) fluorescent LEED display and superior magnetic shielding
- Miniature electron gun with large coherence width and dual lenses
- Suitable for in-situ film growth monitoring
- Low outgassing rate
- Convenient LEED image Capture with external camera
- Simple and powerful operation with digital controller
Applications
The LEED 800 is capable of providing LEED and AES data for a wide range of samples. The larger size allows for higher angular and energy resolution.

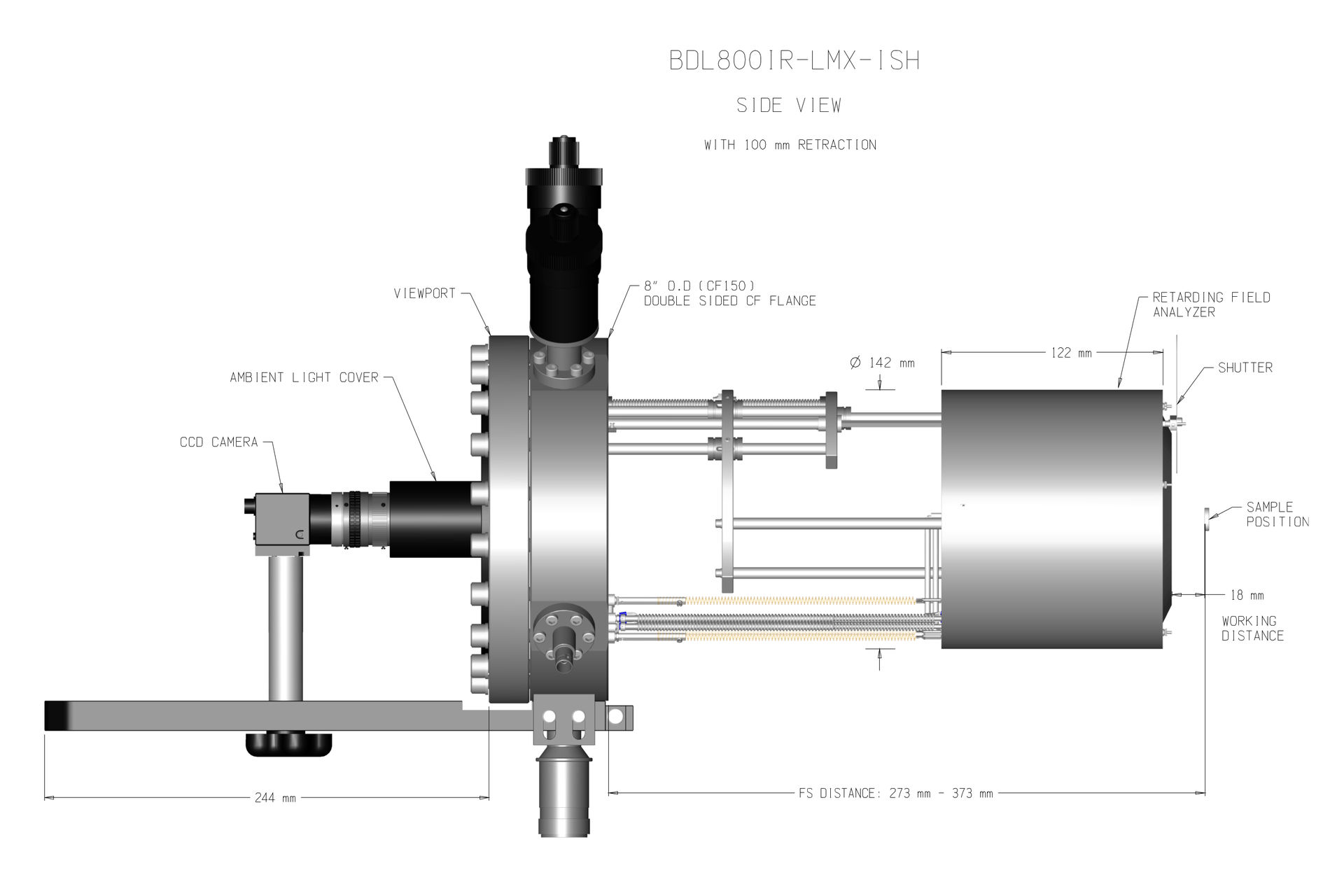

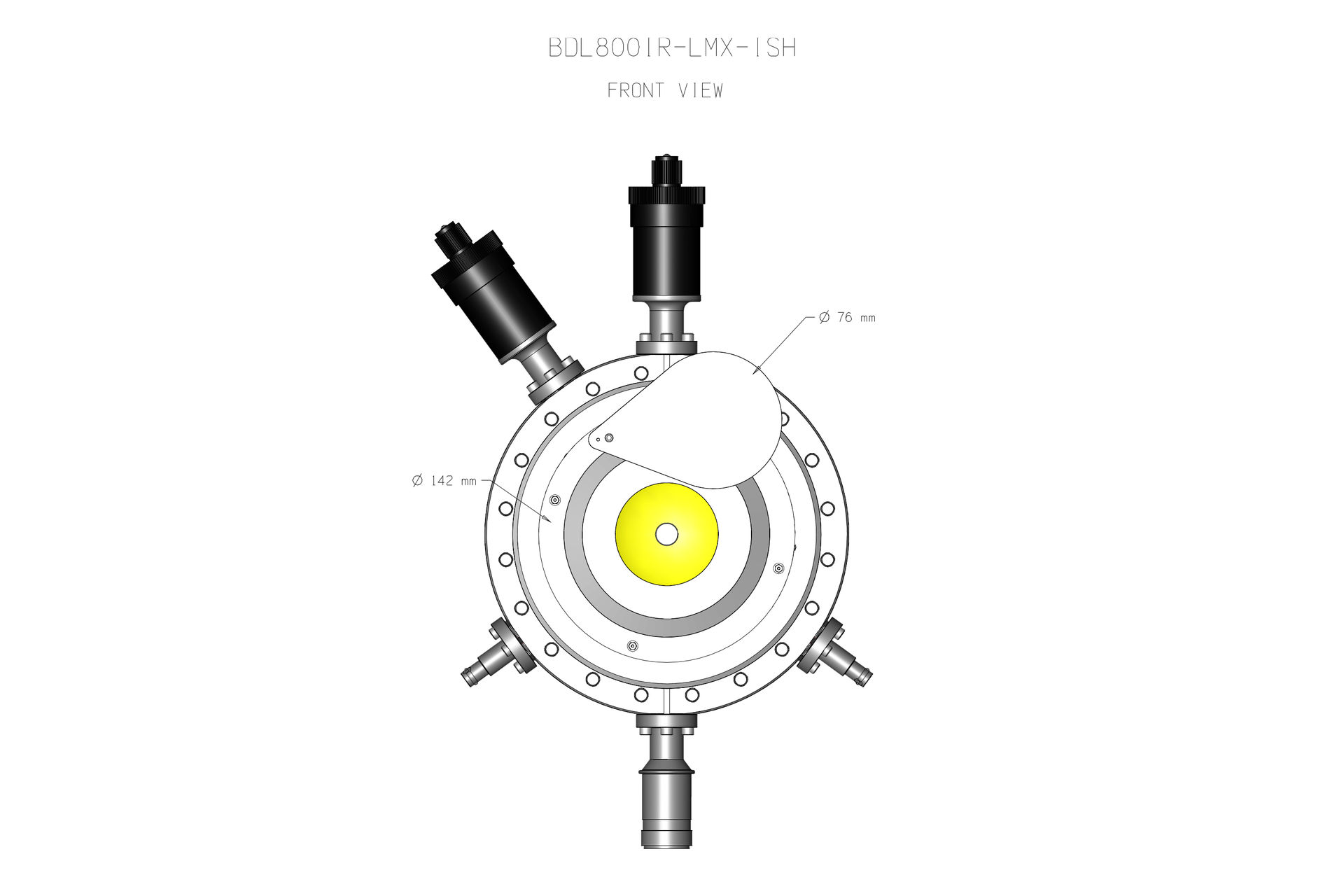

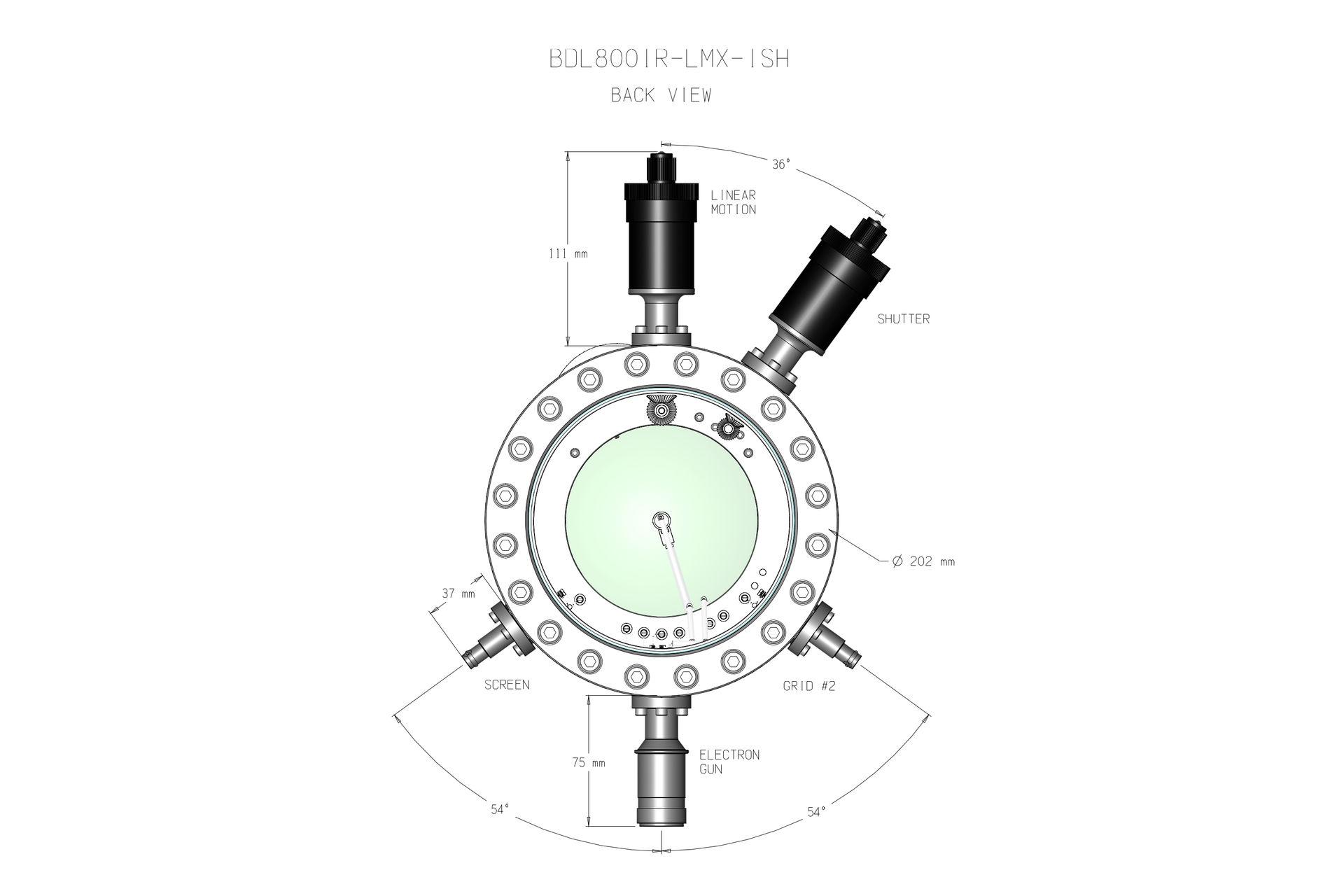

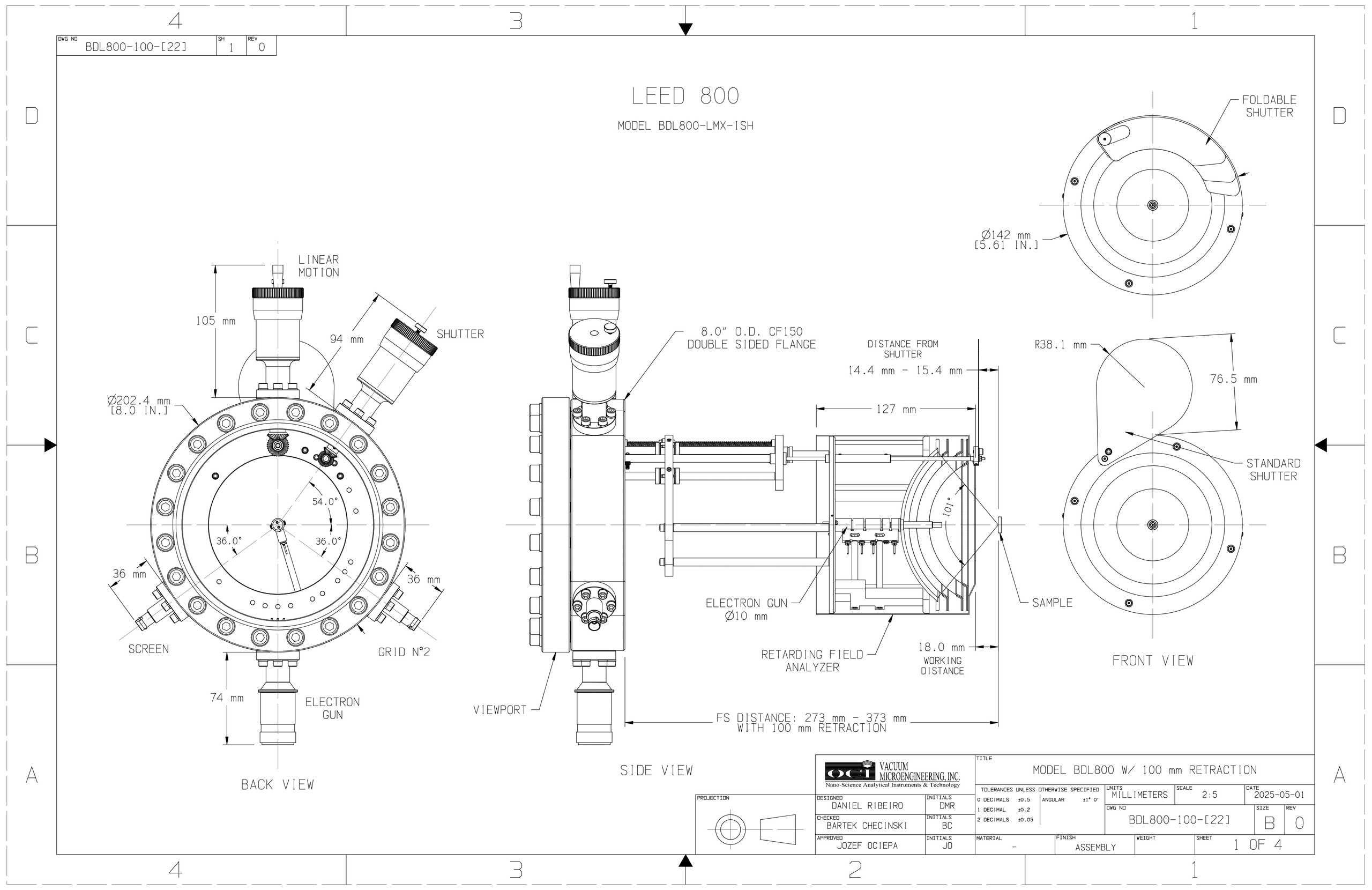

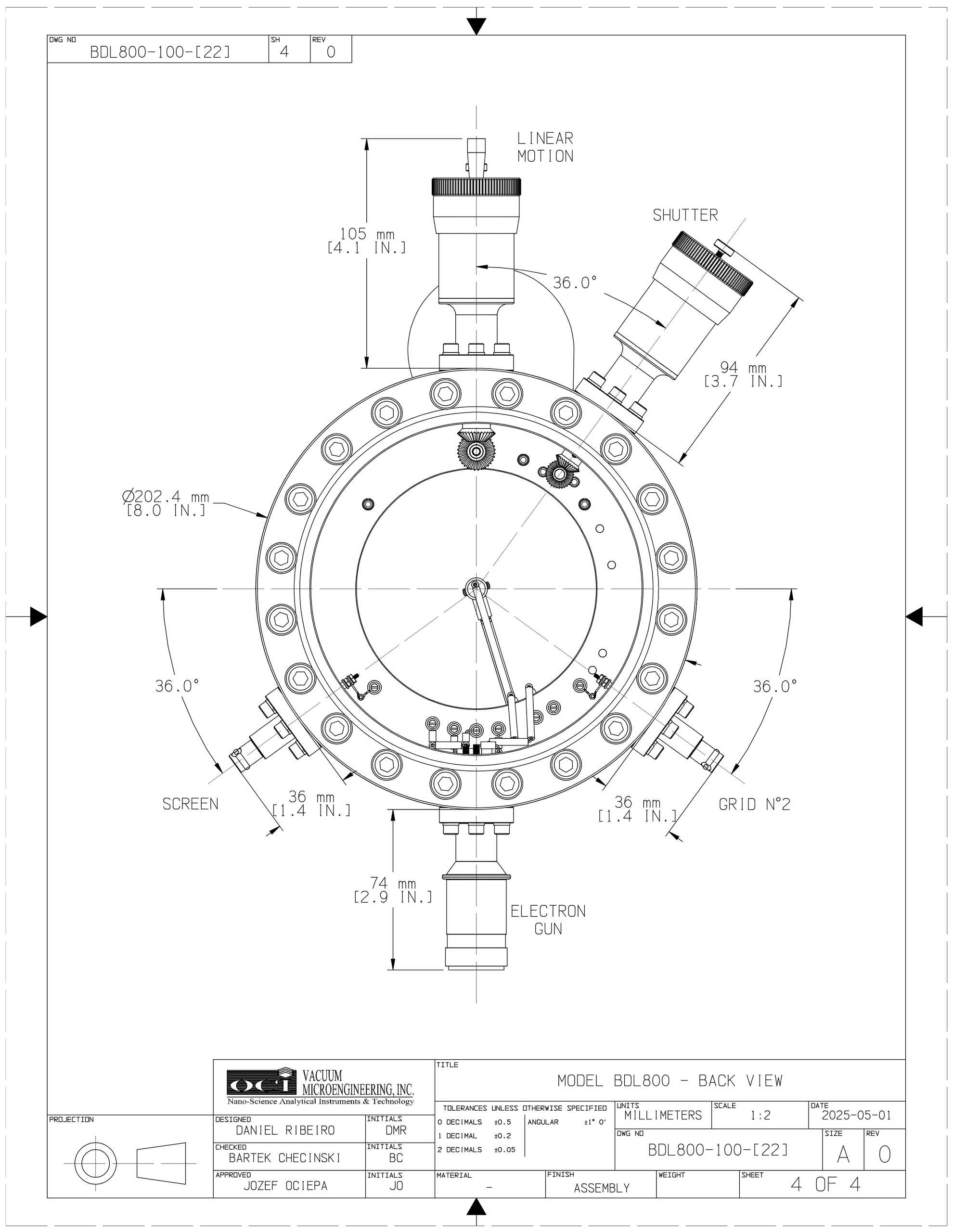

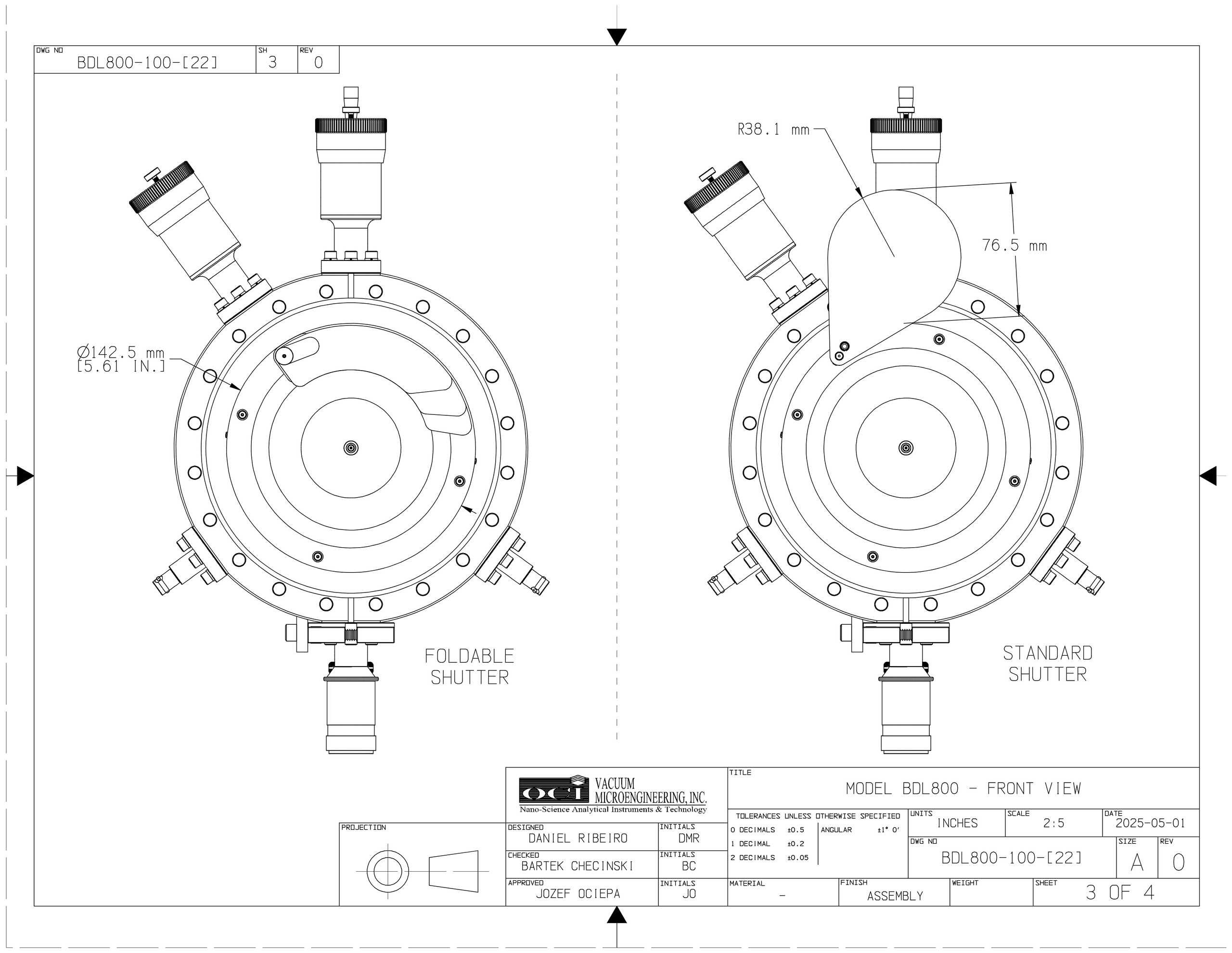

Drawings
For seamless integration, 3D step files are available for most models on the PDF Downloads page.

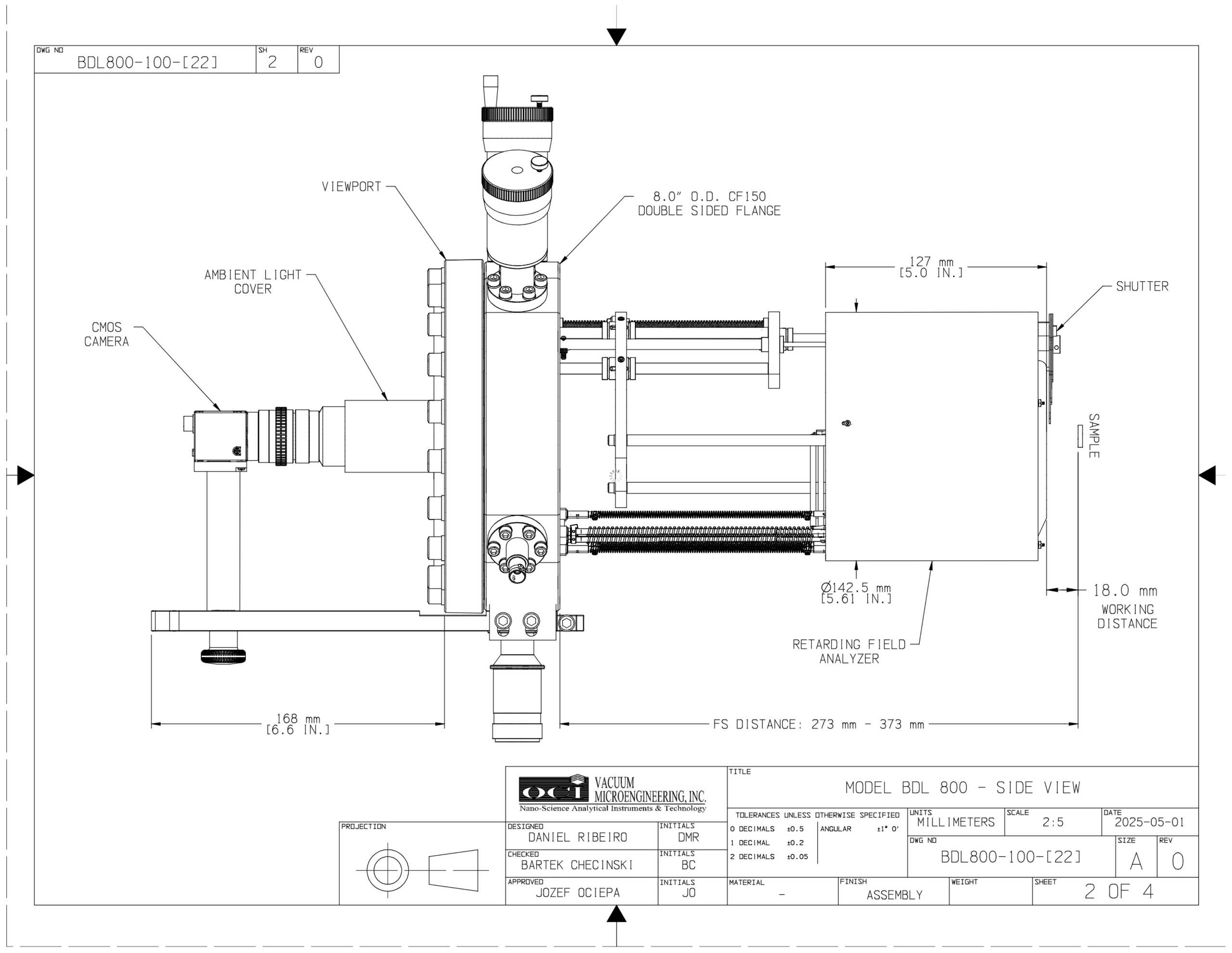

LEED 800 (Model BDL800IR) calculation formula for Flange-Sample distance and
Retraction length:
FS = 173mm + 2 LMX – OV; where FS is the flange to sample distance, LMX is the retraction
length and OV is the overlapping length.
Key Specifications
For detailed specifications, download LEED 800 Specifications (.pdf).
| Optics | |
|---|---|
| Glass-display | Fused silica coated with indium-tin oxide conductive layer and P31 phosphor (ZnS:Ag:Cu-green, 525 nm wavelength) |
| Acceptance angle | 100 °C angle of acceptance from sample at a distance of 75mm |
| Retarding Field Analyser | Concentric assembly of hemispherical grids |
| Working distance | 18mm from sample |
| Grid material | Gold coated stainless steel mesh (100 mesh, 81% transparency) |
| Energy Resolution | 0.2% - 0.5% at low modulation voltages |
| Monitoring | 8" standard viewport |
| Linear motion | up to 150mm retraction from sample (100mm standard); linear ball bearing and acme thread with all spring electr. connections |
| Integral Shutter | Manual shutter driven by a rotary feedthrough |
| Magnetic shielding | Mu metal cylinder with front cover for maximum attenuation |
| Assembly | Extreme-high-vacuum compatibility with stainless steel, high alumina and Au-plated copper alloy materials |
| Mounting | CF8" (DN150CF) double sided conflat flange with sample distance 145mm – 500mm |
| Bakeability | Under vacuum, 250 °C maximum |
| Integral Miniature Electron Gun | |
| Beam energy system | LEED – 0 eV to 750 eV, AES – 0 eV to 3000eV |
| Beam current | LEED – 2 µA at 100 eV and 0.5mm beam size, AES - up to 100 µA at 3 keV |
| Beam size | from 1mm to 250 µm - adjusted by Wehnelt potential, limited by exchangeable aperture down to 50 µm |
| Electron source | Tungsten-2% thoriated filament standard, single crystal LaB6 filament optional |
| Energy spread | 0.45 eV (thoriated - tungsten filament) |
| Overall size | 10 mm lens diameter and 80mm length |
Configuration Guide
The LEED 800 optics is controlled using either a LPS075-D or LPS300-D power supply. The LPS075-D is used to operate the optic in LEED mode only whereas the LPS300-D in conjunction with the LOA10-AES lock-in controller and AUS30 input coupler is used to operate the optics in LEED and AES modes. Integral shutter (Model ISH-8) and LaB6 filament (Model LaB6) are further options.
For more information, download LEED 800 Configuration Guide (.pdf).
Brochure
- LEED 800 Brochure (.pdf)
